System Specifications
| Category | Parameter | Value / Specification |
|---|---|---|
| Electrical | Rated Power | 5 kW |
| Current Range | 0 – 210 A | |
| Voltage Range | 20 – 48 V | |
| Mechanical | Dimensions (W × L × H) | 445 × 655 × 490 mm |
| Ingress Protection | IP42 (System) / IP67 (Wiring & Electronics) | |
| Anode Line | Connections | Swagelok Standard Fittings |
| Inlet Pressure | 3 – 4 bar(g) | |
| Hydrogen Quality | ISO 14687:2019 Type I, Type II – Grade D | |
| Cathode Line | Components | Integrated Air Compressor & Inverter |
| Requirements | Fresh Air Supply, Depleted Air Extraction, Drainage for Condensed Water | |
| Cooling Line | Coolant | DI Water & Glycol |
| TIN | 65 – 75 °C | |
| TOUT | 75 – 85 °C | |
| Other Interfaces | Power Supply | 12 V / 48 V |
| Communication | CAN Interface |

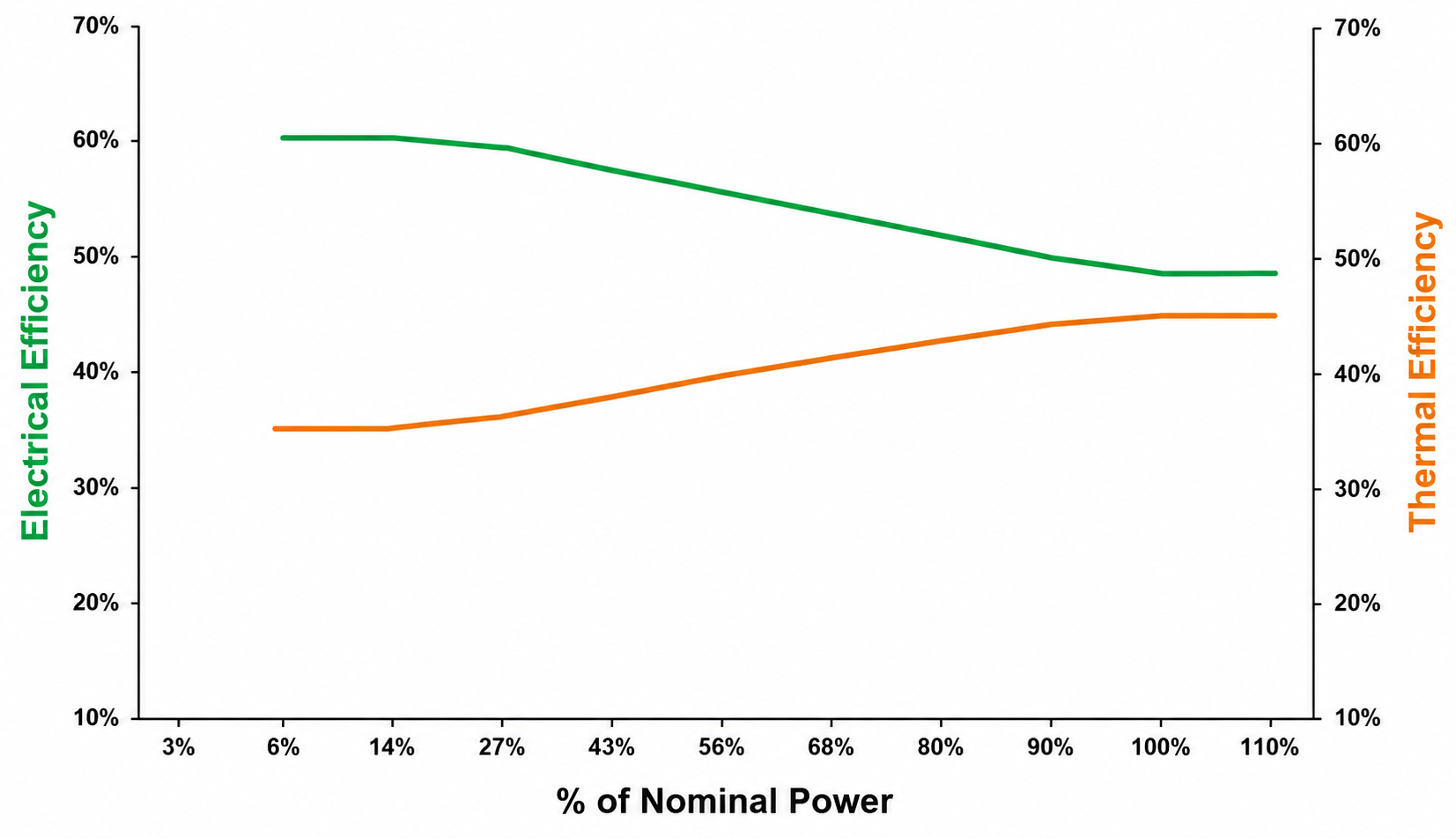

Efficiency Curve

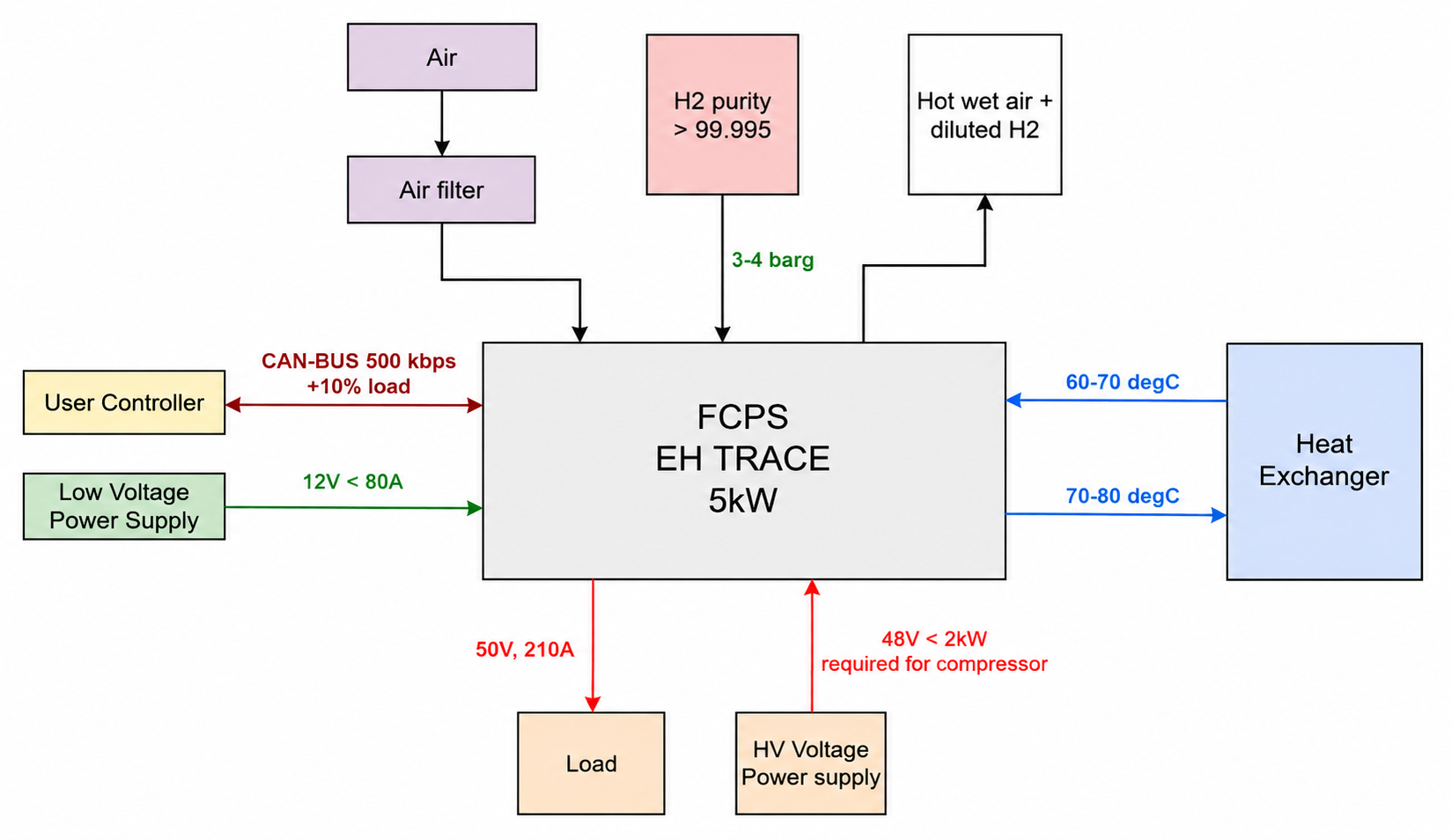

System Boundaries
Available Models
| Model | Rated Power |
|---|---|
| FC-5 | 5 kW |
| FC-10 | 10 kW |
| FC-20 | 20 kW |
| FC-30 | 30 kW |
| FC-40 | 40 kW |
